BFY Thin blade Slitter scorer machine electric adjust knife type
Features:
◎ Adopt front-scoring feeding, back double rubber roll leading paper, paperboard running steady.
◎ Slitting Part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
◎ Scoring Part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
◎ Electric control lift-down and correct error, easy to operate, suit for different requirements.
◎ Adopt China famous brand or imported electric element, dependable performance.
Technical parameters:
Model | 2000 | 2300 | 2500 | 2700 | 3000 |
Machine dimension (mm) | 2600×750× | 2900×750× | 3200×750× | 3400×800× | 3700×800× |
Power (KW) | 4 | 4 | 4 | 4 | 5.5 |
Max slitting width (mm) | 1800 | 2100 | 2300 | 2500 | 2800 |
Min slitting width (mm) | 140 | 140 | |||
Min slitting length (mm) | 435 | 460 | |||
Min scoring width (mm) | 80 | 80 | |||
Scoring height (mm) | 0-10 | 0-12 | |||
Blade (mm) | φ200×122×1.2 | φ200×122×1.2 | |||

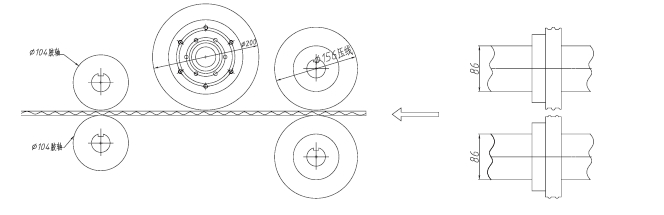

Blade & Scoring Composed |
| ||||
