PRODUCT DESCRIPTION
It is improved from the old chain feeding machine of printer and any other molding machines.
PRODUCT DETAILS

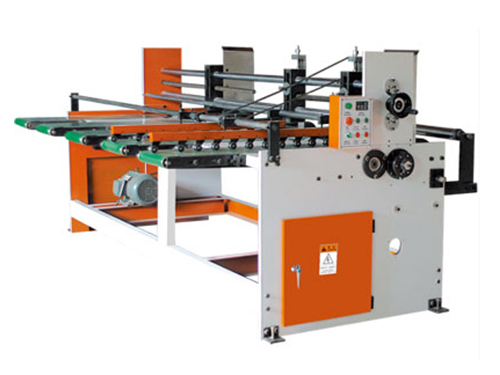

It is improved from the old chain feeding machine of printer and any other molding machines to realize the function of continuous sheet feeding of large quantity without labor single-sheet feeding to ensure the sheet feeding in line. Also it also largely improves the working efficiency, reduce the labor intensity and decrease the wastage rate.
The main technical parameters:
model | Biggest into paper | The power | speed | Shape dimension |
SX1600 | 1600×1100mm | 1.5kw | 0-60 | 2500×1800×1200mm |
SX1800 | 1800×1100mm | 1.5kw | 0-60 | 2500×2000×1200mm |
SX2000 | 2000×1100mm | 1.5kw | 0-60 | 2500×2200×1200mm |
SX2500 | 2500×1100mm | 2.2kw | 0-60 | 2500×2700×1200mm |
