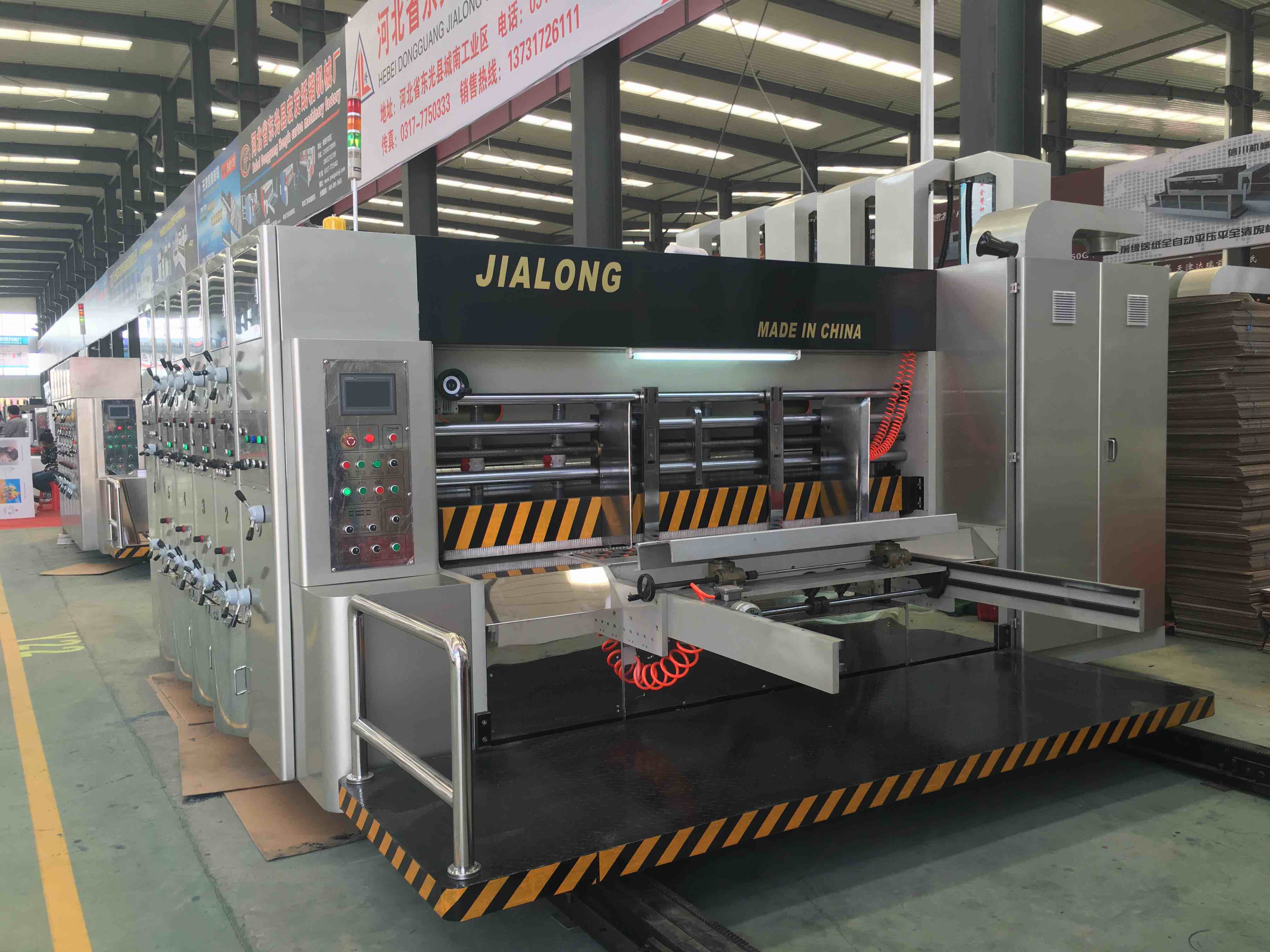

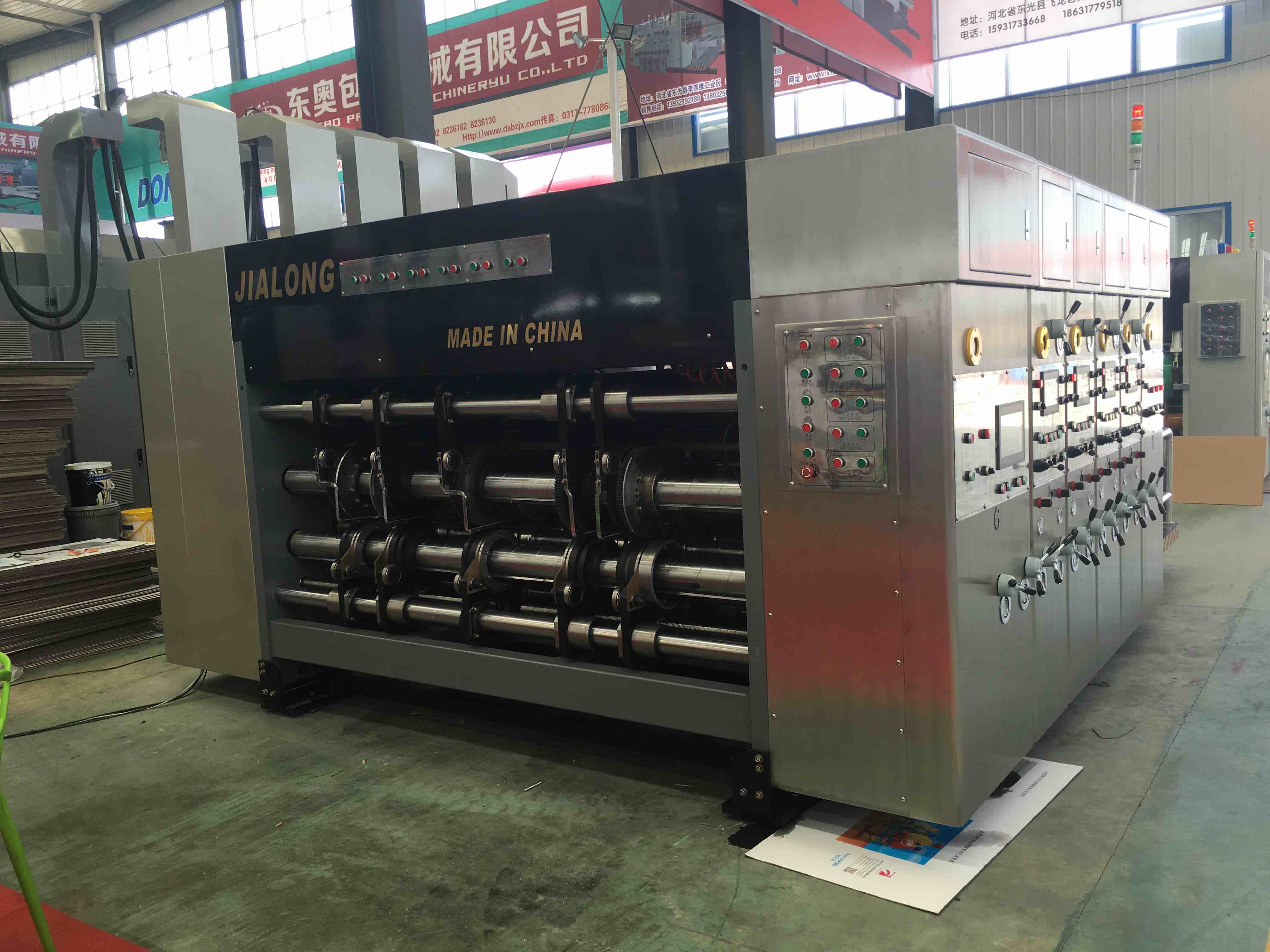

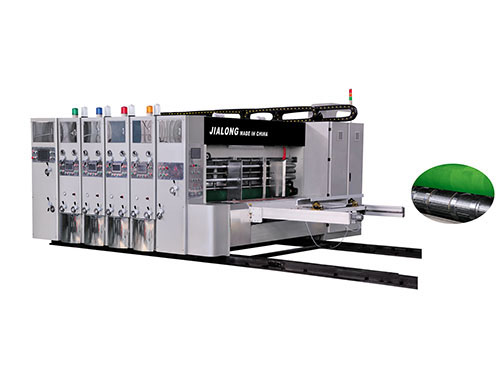

JLA Full automatic high speed flexo printer slotter die cutter stacker machine

Performance of the main mechanisms:

Designed According the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a shot time, and display with a exact data.

 ◆ All the drive rollers adopted high quality steel materials,hard chromium plating and the surface treated by lapping finish.

 ◆ The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.

 ◆ The main drive roller adopt keyless connect, decrease the connection gap, guarantee the printing precision.

◆ Lubricate oil automatic balance device, keep the equal oil level equal in each unit.

◆ The machine adopt PLC control, with"automatic zero return"and"memories"function.

◆ Use sun feeder for feed the cardboard.

◆ Customer can chose use steel anilox roller or ceramic roller, the lines of the anilox roller ac so can be chose accord the customer use.

Function of feeding department:

1. adopt sun feeder,wind absorbing auxiliary paperboard feeding,can make  the  cardboard feed adoringly. The volume of the wind can be adjusted accord the camber of the paperboard.

Start protecting device of the main motor, when the machine platform not been locked, the main motor can not running.

2. Continuous and skip cardboard feeding, counting device is install.

3. Double rubber roller for feeding, the rubber roller have slot for prevent the overlarge pressure.

4. The feeding roller is rubber with cylinder cushioning device,precise feeding, with not detector the hardness of the cardboard when the feeding space is small.

5. The side baffles adopt electrical control with date display.(here can add automatic pneumatic aligning device),the back baffle box adopt electric adjustment ,the front baffles space is synchronous manual adjustment.

6. Brush dust-removal equipment with dust-absorption blower,can adjust the wind volume accord the cardboard size.

7. Each unit is electric moving left and right with warning bell,make sure the operator safe.

8. Electronic counter be sure for setup the production quantity ,when complete the production quantity ,automatic warning.(if chose the touch screen control,the touch screen will display the production quantity).

Function of printing department:

1. The printing roller adopt without gap roller, surface is treated by lapping finish,after balance correct and hard chrome plating,smooth is operation.

2. Quickly change printing plate device, foot switch for electric control the printing roller's clockwise and anticlockwise running.

3. The feed roller,press roller, rubber roller and anilox roller space adjustment all adopt self-locking structure.

4. The phase of the printing roller adopt PLC and electric 360°adjust,accord the error to input ter with double knives slotting, the height of the carton adopt PLC and electric input data adjustment(PLC with touch screen adjustment as an option)

3. The phase of the slotting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data,can be adjusted while the machine running or stop. (PLC with touch screen adjustment as an option)

4. The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment.

5. Creasing space and knife roller space adjustment adopt self-locking structure.

6. The carton height adjustment have a anticollision device for the slotting knives, will not destroy the machine.

7. An anticollision device is used while the slotting knife plate horizontal moving(electric formula)

8. The slotting knives is sawtooth, adopt alloy steel material and after heat treatment and grinded,more hard wearing and sharp-edged,two-piece type cutting knives,sharp-edged and high precision.

9. The hole and handle hole die as an option.

Function of die-cutting department:

1. The rubber roller adopt mechanical control the position move left and right the movement distance is 40mm.

2. The phase of the die-cutting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data, can be adjusted while the machine running or stop(PLC with touch screen adjustment as an option)

3. The horizontal direction moving of the printing roller adopt PLC and electric adjustment, input the adjust data accord the error, adjustment distance is 10mm(PLC with touch screen adjustment as an option)

4. The space adjustment between rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust, decrease the rubber wear, increase the rubber life.

5. The space adjustment between the feed roller adopt self-locking structure.

6. The unique speed compensation device can make the rubber roller rolling running with the die roller,make the surface speed of the rubber cushion is completely controlled by the die roller, the shape of the carton sheet will absolutely equal to the die pattern.

7. There is a rubber repair device with the machine, the rubber can be used after be repaired.

Automatic stacker

1.Paper-receiving arm manual operation, the height can be chose

2.The belt of paper-receiving arm adjust elastic individually.

3.The rising and descending of paper-receiving platform is driven by powerful chain.

4.The platform adjust slope as cardboard stacking, elevator motor has electric brake function and the platform can ensure fixed position.

5.Paper-receiving layer board pneumatic action, paper- receiving board automatic reveal to hold up cardboard when cardboard reached to setted height.

6.The stacking height of cardboard is 1600mm.

7.Conveyor drive motor 2.2kw（speed control）×1set

8.The elevator lift motor 3kw×1set.

9. Air cylinder of paper-piling armф80×300（attached with three-position five-path magnetic valve）

10.The length of this system is 5.5 meter, which includes paper-receiving part, transmission part, paper-collecting part, uses friction belt to transfer cardboard.

Technical parameters:
