Rational mechanical structure, rigidity is strong, stability is good, have long performance life.
All operation control on the same side, easy to operate, the photoelectricity is counted.
Cut the paper range to cut vertically for four times, crosscut 400mm-2400mm.
Cut paper precision±2.5mm.

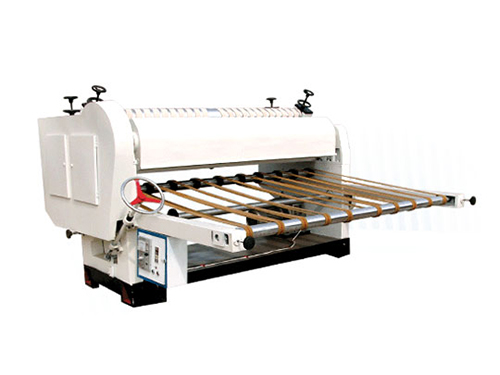

SC-B-60 Single cutter
Features:
SC series of cylinder cutting machine,main used for cutting the cylinder paper or single paperboard to quadrangle of needing. And has the characteristics such as easy structure, convenient adjustment, long using life and so on.
Technique parameter：
| Parameter | Unit | Specification | ||
Max.cut width | mm | 1300 | 1700 | 2000 |
Cut lenghth range | mm | 390-2400 | 390-2400 | 390-2400 |
Cut paper time | mm | 20-120 | 20-120 | 20-120 |
Cut thick | 2 | 2 | 2 | |
Confect electric machine | mm | 4.0 | 4.0 | 4.0 |
Work speed | mm | 0-70 | 0-70 | 0-70 |
Fighre dimesion | mm | 2100*2100*1450 | 2100*2100*1450 | 2100*2100*1450 |
Error | mm | ±3 | ±3 | ±3 |
