Full automatic Top plater pallet wrapping machine 1650F-CS electric Type
1.Machine introduction
Fit motorised top plate based on T1650F. This machine is widely suitable for tall and unstable good, top plate provides a press to the top of load and ensure it safety packing. This machine is widely suitable for tall unstable good, top plate provides a press to the top of load and ensure it safety packing.
2.Technicial parameter
| Wrapping size（L*W） | （500~1200）×（500~1100）mm |
| Packing Height | Made according to requirement |
| Turntable diameter | 1650mm |
| Turntable Height | 85 mm |
| Turntable weight capacity | 2000kg |
| Turntable speed | 0-12rpm |
| Top pressure | 20-30 kg |
| Electrics | 380V 50HZ |
| Power | 1.5kw |
| Machine dimensions (mm) | 2650(L)×1650(W)×2800(H) |
| Packing efficiency | 20-40 loads/hour base on load |
| Top Plate Device | Adopt Pneumatic Direct Transmit Orbit Top Plate |
| Penumatic Systerm Pressure(mpa) | 0.6-1.0 |
| Machine weight | 800kg |
3、Material usage:
Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the baggage.Thefilmisrecyclable.Specification:width:500mm,thickness:20-25 microns,length:1500meters,weight: max:16kg,stretchable,one side sticky,transparent or colored.
4.Function of the machine:
1) Control System PLC control Photo-eye auto-height sensing pallet height Separate top ,bottom & up-down Wrap Counter options Overwrap time is up to create an overwrap Reinforce wrap times is set to better secure 2 loads placed on top of each other Tension Control adjustment on the panel Separate start, pause and emergency stop buttons Power indicator Manual carriage up/down Variable Turntable Speed Carriage up/down speed control
Manual/automatic exchangeable
2)Turntable
1650mm Diameter Structural steel plate
85mm Height floor to top of turntable
3)Turntable drive
0-12rpm variable turntable speed by frequency changer
Position turntable alignment
Soft start
4)Film carriage
Powered pre-stretch system up to 250% to min film consumption
Film delivery variable speed by separate DC Drive Motor
Electronic film tension control adjustment on panel
Film dancer-bar with variable speed output

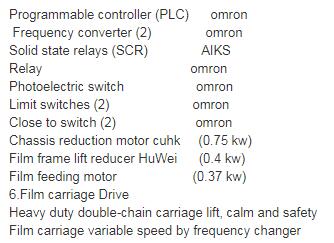

5)The main electrical configuration
