Semi Automatic Pallet Wrapping Machine 1650EB
Machine introduction:
Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry, electronic industry, building materials,home appliances, papermaking,foodstuff & drink etc.
Control:
PLC control
Photo-eye pallet height sensor
0-3 top(bottom ) & up-down Wrap times choose
0—12RPM variable turntable speed by frequency changer
Variable carriage up/down speed
Cycle pause capability
Manual carriage up/down switch
Turntable jog button
Turntable
1650mm Diameter Structural steel plate
85mm low profile turntable
Position turntable alignment
Turntable soft start/soft stop, heavy duty chain drive
Film carriage Drive
Friction brake (variable film tension control )
Heavy duty chain carriage lift, calm and safety
Safety stop to avoid foot crush

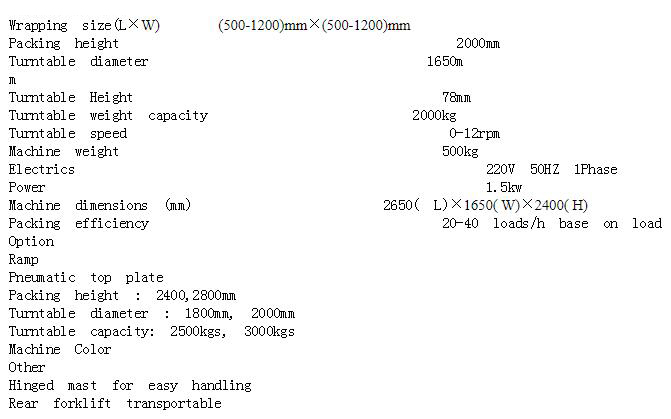

Technology Data:
