PRODUCT DESCRIPTION
ZH800/800C/880C/1000 is the company's main push ordinary type folder gluer, its stability,versatility and flexibility are the user's praise. Small to large box can paste.
PRODUCT DETAILS
PRODUCT INTRODUCTION：

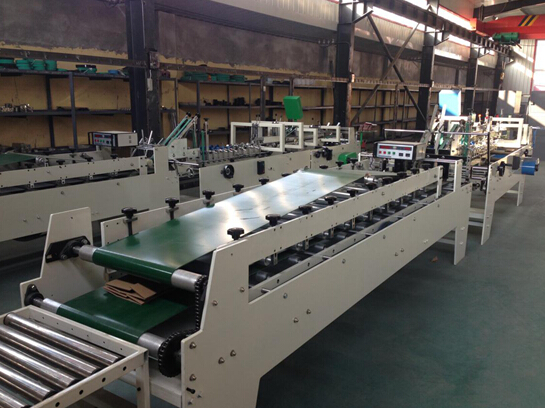

ZH800/800C/880C/1000 is the company's main push ordinary type folder gluer, its stability,versatility and flexibility are the user's praise. Small to large box can paste. For small boxes, it canmake 40,000 to 50,000 pcs. per hour lt is an ldeal equipment for printing industry.
CHARACTERISTICS：
● Line speed: 0～220 m/min continuous adjustment.
● Usage paper: 210～600g/m2 Paperboard.
● The box forming: Either side folds,the both sides prefold and either side glue.
● Paper feeding: Automatic feeding
● Binder: Dissolve glue.
● Electric: Single-phase AC220V 2.2KW
● Weight: 1800kg
● Dimension: 5800×900×1300mm
● The counting range: 0～999999(full-auto matic)
MAIN TECHNICAL DATAS:
| 型号 Model | A 大 AMax | A 小 AMin | B 大 BMax | B 小 BMin | C 大 CMax | C 小 CMin | 重量 Weight |
| ZH-800 | 560mm | 105mm | 550mm | 50mm | 270mm | 50mm | 1.5T |
| ZH-800C | 560mm | 65mm | 550mm | 50mm | 270mm | 30mm | 1.5T |
| ZH-880 | 660mm | 105mm | 550mm | 80mm | 330mm | 50mm | 2.0T |
| ZH-1000 | 760mm | 130mm | 600mm | 80mm | 380mm | 60mm | 2.3T |
